YET-C-4L

• Product Features
• Detailed Specifications

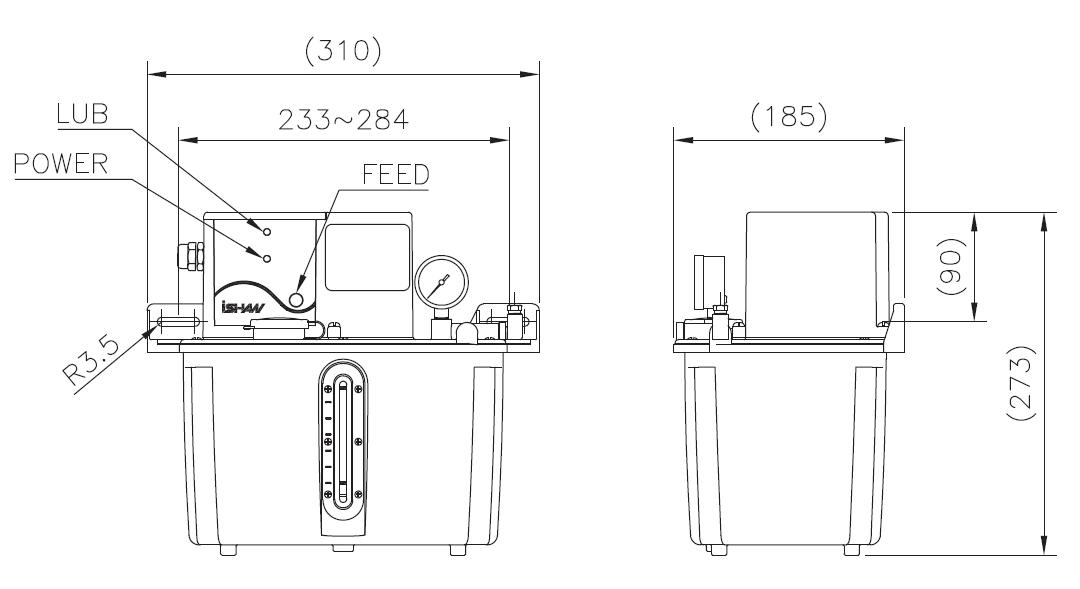

• Assembly drawings

1. The over temperature/load protector is attached to protect the motor.

2. The function of fixed pressure for the pressure relief valve can prolong the system life

3. The indicator on the panel can display the operation of the lubricator.

4. "Feed" key can force the lubricator to function. (cooperate with PLC control system).

Model	YET-C1	YET-C1P1
Voltage (Single Phase)	110V or 220V	110V or 220V
Consumption Power (W)	100	100
Capacity of Terminal Output (A)	0.3 (Float Switch)	0.3 (Float Switch)
Lubrication time (second/minute)	Cooperate with PLC control system	Cooperate with PLC control system
Intermittent Time (second/minute/hour/cycle)	Cooperate with PLC control system	Cooperate with PLC control system
Output Bore	Ø4 or Ø6	Ø4 or Ø6
Max. Output Pressure Mpa (kgf/cm2)	0.5 (5)	0.5 (5)
Output Volume (cc/mm)	200	200
Pressure Release device	X	X
Float Switch	O (NC)	O (NC)
Pressure Switch (kgf/cm2)	X	2.5-1.9
Pressure Gauge	O	O
Alarm Beeper	X	X
Tank Capacity (L)	2 / 3 / 4(Metal Tank)
Weight (kg)	2.6  /  2.9  /  3.6

Note： Because of continuous improvements, above specifications are subject to change without prior notice.
