YAC-3L

• Product Features
• Detailed Specifications

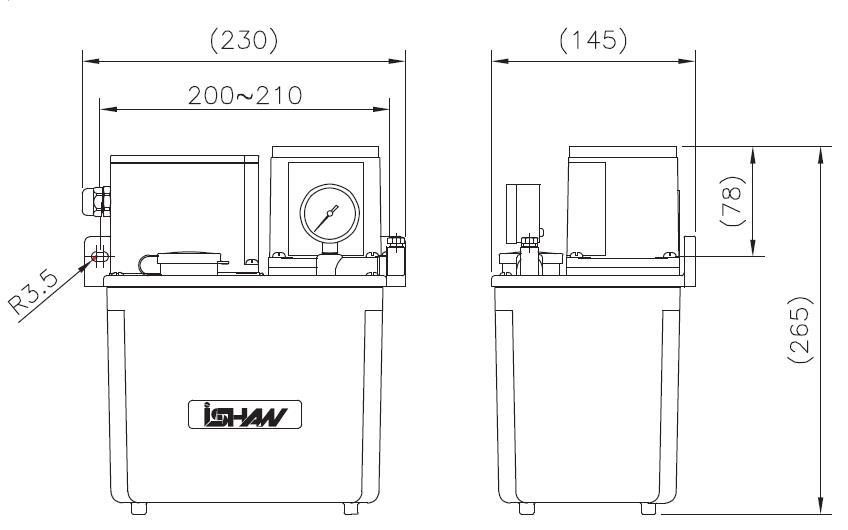

• Assembly drawings

1. The motor is of long-time operation.

2. The pressure release device is included.

3. The power indicator displays the operation of the lubricator.

4. "Feed" key can force the lubrication to function. (cooperate with PLC control system).

Model	YAC
Voltage (Single Phase)	110V or 220V
Consumption Power (W)	56
Output Power (W)	25
Capacity of Terminal Output	0.5A 240Vac/ 200Vdc (Float Switch)
Lubrication time (second/minute)	Cooperate with PLC control system
Intermittent Time (second/minute/hour/cycle)	Cooperate with PLC control system
Output Bore	Ø4 or Ø6
Max. Output Pressure Mpa (kgf/cm2)	1 (10)
Output Volume (cc/ min)	250 (Standard),  400 (Option)
Pressure Release device	X
Float Switch	O
Pressure Switch (kgf/cm2)	X (Option)
Pressure Gauge	O
Alarm Beeper	X
Tank Capacity (L)	3  /  4(Metal Tank)  /  8(Metal Tank)  /  20 (Metal Tank)
Weight (kg)	4.4      /         4.8           /        8.5            /     17.1

Note： Because of continuous improvements, above specifications are subject to change without prior notice.
