Motor & Pump
Motor & Pump
Motor & Pump

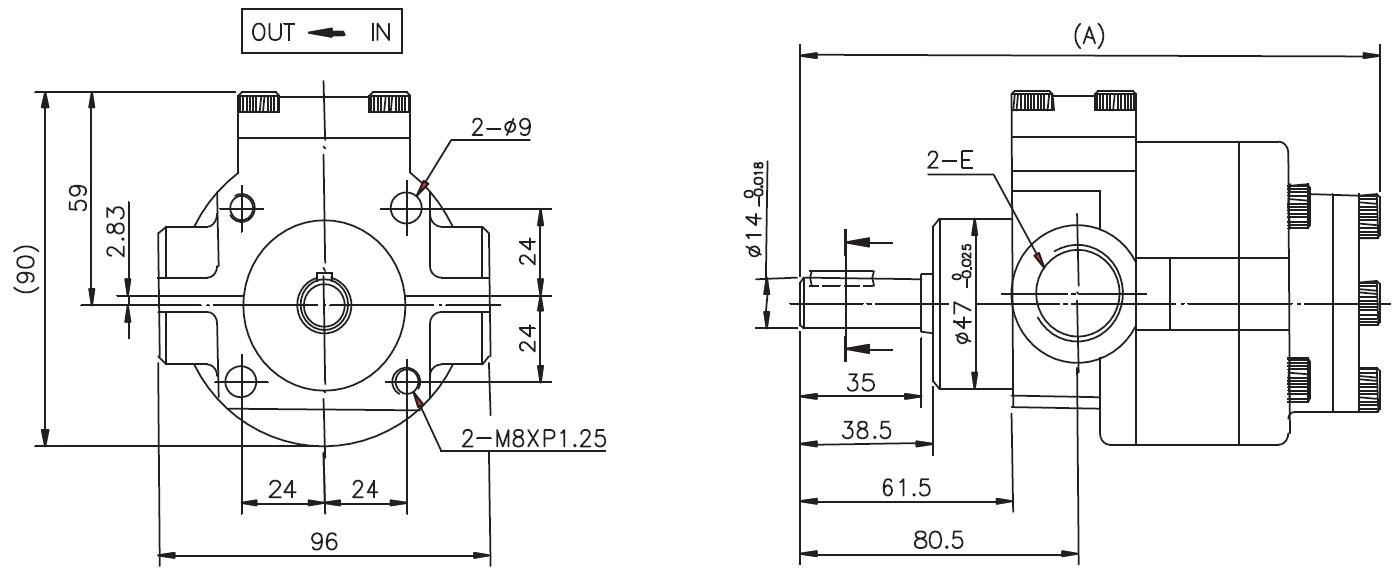

Vop Oil Feed Pump
| Vop Oil Feed Pump | ||||||||
| Model | Flow rate | Max. Pressure Mpa (kgf/cm2) | Max. Speed rpm | A | E | Weight (g) | ||
| cc/rev | 1/1500rpm | 1/1800rpm | ||||||
| VOP-204 | 4 | 6 | 7.2 | 2.5 (25) | 1800 | 148 | PT1/2" | 3.7 |
| VOP-206 | 6 | 9 | 10.8 | 2.5 (25) | 1800 | 153 | PT1/2" | 4 |
| VOP-208 | 8 | 12 | 14.4 | 2.5 (25) | 1800 | 158 | PT1/2" | 4.2 |
| VOP-210 | 10 | 15 | 18 | 2.5 (25) | 1800 | 160 | PT3/4" | 4.3 |
| VOP-212 | 12 | 18 | 21.6 | 2.0 (20) | 1800 | 168 | PT3/4" | 4.5 |
| VOP-216 | 16 | 24 | 28.8 | 2.0 (20) | 1500 | PT3/4" | 4.8 | |
| VOP-220 | 20 | 30 | 36 | 1.5 (15) | 1500 | PT3/4" | 5.3 | |
| Viscosity ： 20~320 cSt at 40℃ | ||||||||

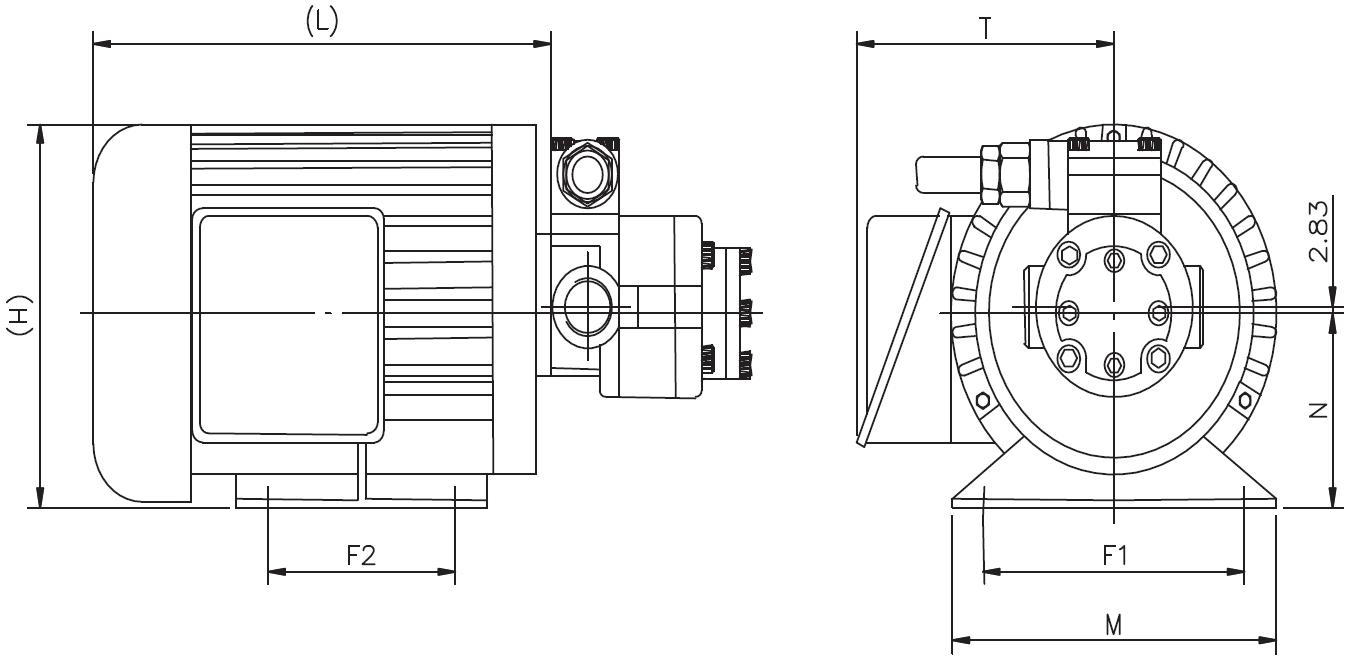

| Motor Output | (L) | (H) | F2 | F1 | M | N | T | |
| 1/2 HP | 246 | 168 | 100 | 125 | 158 | 80 | 138 | |
| 1 HP | 261 | 168 | 100 | 125 | 158 | 80 | 138 | |
| 2 HP | 285 | 188 | 125 | 140 | 174 | 90 | 152 | |
