1RA Oil Feed Pump
| The structure is simple with strong suction and low noise as well as high speed. |
| It is suitable for the continuous low pressure lubrication. |
| The feature is of fixed inlet and outlet, but reversible rotation direction. |
| Viscosity ： 30~150 cSt |
| Model | Output Volume (cc/rev) | Output Volume (L/min) | Max Pressure Mpa (kgf/cm2) | |
| 1500 rpm | 1800 rpm | |||
| 1RA-2FS | 1.8 | 2.7 | 3.2 | 0.5 (5) |
| 1RA-3FS | 2.5 | 3.7 | 4.5 | 0.5 (5) |

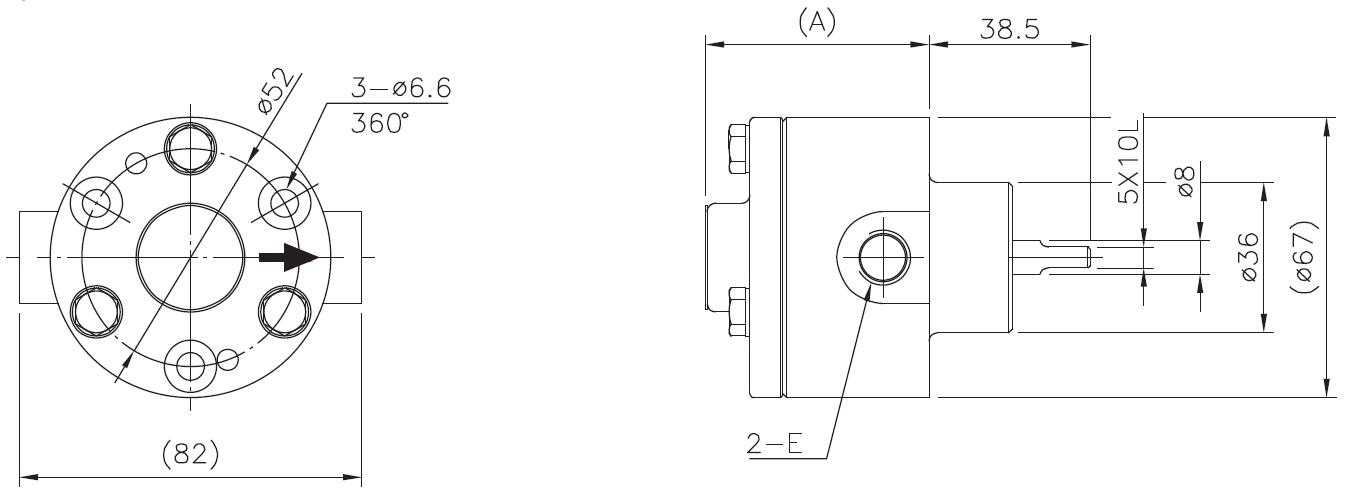

| Model | Max Revolution (rpm) | Bore (E) | (A) | Weight (kg) |
| 1RA-2FS | 2000 | PT1/4" | 50 | 1.1 |
| 1RA-3FS | 2000 | PT1/4" | 55 | 1.2 |
