Voltage | 110V/220V or 220V/380V or 220V/440V or 208V/415V | |||||||

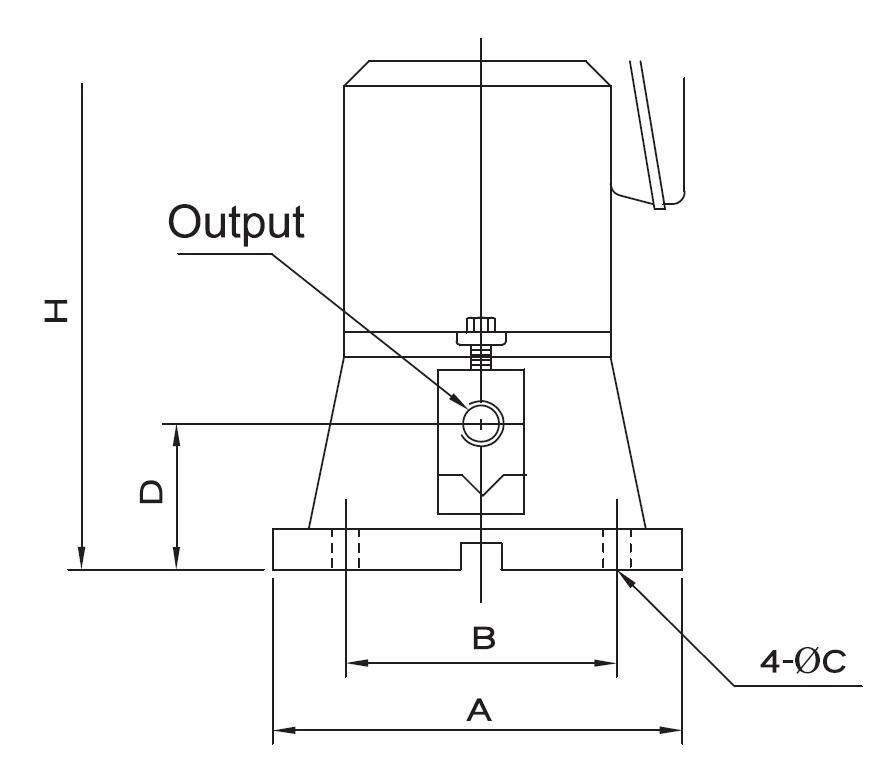

Power (HP) | H | Pumping Water (2m) | Input | Output | A | B | ØC | D |
1/8 | 175 | 22L/min | PT3/8" | PT3/8" | 142 | 99 | 8 | 48 |
1/4 | 235 | 56L/min | PT3/4" | PT2/1" | 185 | 133 | 9 | 55 |
1/2 | 310 | 100L/min | PT1" | PT3/4" | 165 | 133 | 10 | 70 |
Note:
1.the output volume is based on 60Hz.
2.please set up the motor at the bottom of the coolant and the coolant must be higher than the position of the inlet to ensure smooth operation.
3. Because of continuous improvement , above specification are subject to change without prior notice.
