Motor & Pump
Motor & Pump
Motor & Pump
Electric Immersion Pump (Coolant Pump)
| Voltage | 110V/220V or 220V/380V or 220V/440V or 208V/415V | ||||||||

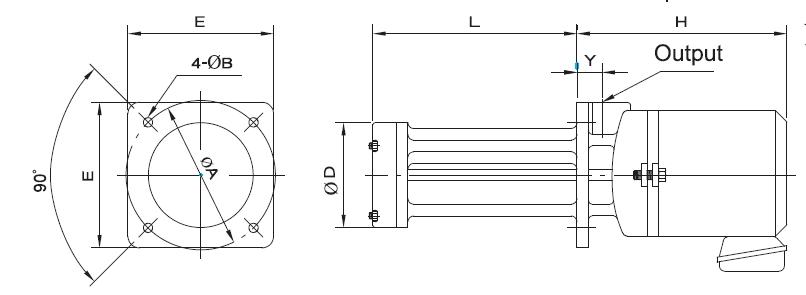

| Power (HP) | H | Pumping Water (2m) | Output | ØA | ØB | E | ØD | Y | L |
| 1/8 | 150 | 25L/min | PT3/8" | 128 | 8 | 125 | 90 | 18 | 110/130/150/180/210 |
| 1/4 | 170 | 60L/min | PT2/1" | 158 | 9 | 180 | 125 | 20 | 150/180/210/270 |
| 1/2 | 230 | 107L/min | PT3/4" | 170 | 9 | 180 | 140 | 20 | 150 |
| 1/2 | 240 | 107L/min | PT3/4" | 170 | 10 | 195 | 140 | 25 | 175/210/300 |
| 1 | 295 | 160L/min | PT1" | 170 | 10 | 195 | 150 | 27 | 180/280 |
Note： Because of continuous improvements, above specifications are subject to change without prior notice.
