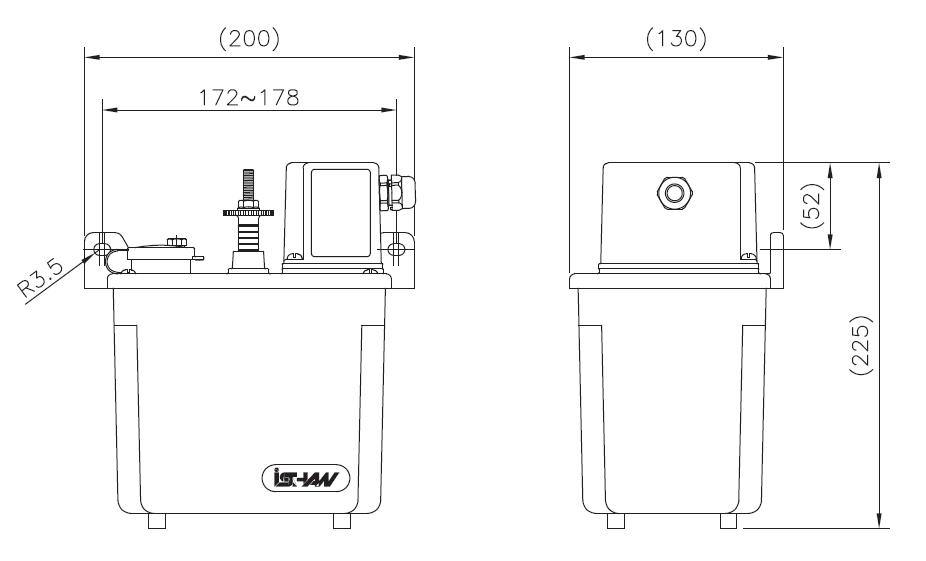

• Assembly drawings

1. Compact size for installation.

2. Easy operation.

3. Include check valves to prevent the reverse flow.

4. The system is recommended to applied to easier machinery system with the lubrication of lower requirement level.

5. Oil viscosity (40°C)： 20~150cSt.

Mosdel	Intermittent time (min)	Voltage(Single Phase)	Consumption Power (W)	Capacity of Terminal Output	Output bore	Float switch	Discharge Pressure Mpa (kgf/cm2)	Output volume (cc/cy)	Tank capacity (L)
YESB	3/5/10/15/30/60(No Adjustment)	110V or 220V	5	0.5A 100Vac (Float Switch)	Ø4 or Ø6	-	0.3 (3)	3-6	2

Note： Because of continuous improvements, above specifications are subject to change without prior notice.
