YML

• Product Features
• Detailed Specifications
• Assembly drawings

1. Compact size for installation.

2. Easy operation.

3. Include check valves to prevent the reverse flow.

4. The system is recommended to applied to easier machinery system with the lubrication of lower requirement level.

5. Oil viscosity (40°C)： 20~150cSt.

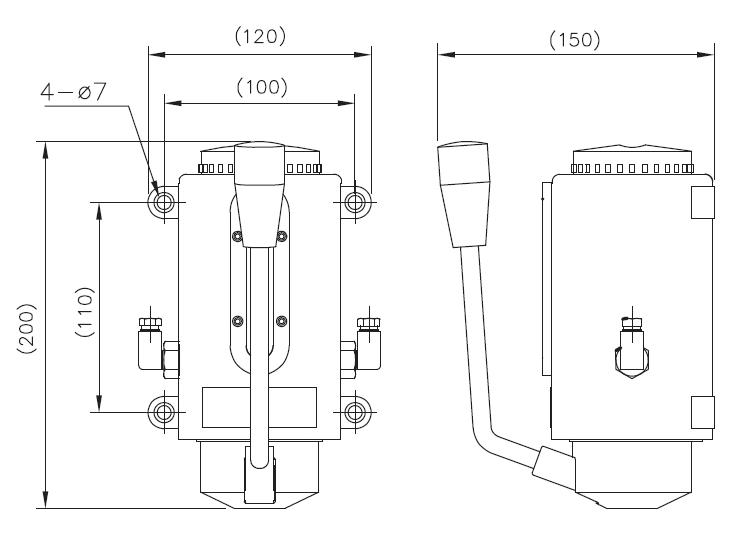

Model	LxWxH	PxK
YML-8	120*150*200	100*110



Model	YML-8
Output Volume (cc/cy)	8
Max. output Pressure Mpa (kg/cm2)	1.5 (15)
Tank Capacity (cc)	600
Effective Capacity (cc)	450
Output Bore	Ø4 or Ø6
Direction of Bore	Left or Right
Weight (kg)	1.4

 Note： Because of continuous improvements, above specifications are subject to change without prior notice.
