1. Lubricant micro output reaches 0.003 c.c./ cy.
2. The consumption of lubricant is only 2.5~5.0 c.c.
3. Cost reduction via the low consumption of lubricant during cutting process.
4. Enhance the productivity and prolong the tool life.
5. Environment friendly via the low consumption of lubricant during cutting process.
6. Improve the precision of cutting process.
|Input Air Pressure Range||3.0 ~ 8.0 kgf/cm²|
|Output Volume Range||0.003 ~ 0.03 c.c/cy (under 32 cSt and input pneumatic pressure 4.0kgf/cm²)|
|Output Volume Adjust Steps||53 steps|
|Increment steps||0.0005 c.c.|
|Air Filter Needed||Level of 0.3µ|
|(liquid and oil separation)|
|Timer Adjustable Range||5.0 ~ 20.0 Sec.|

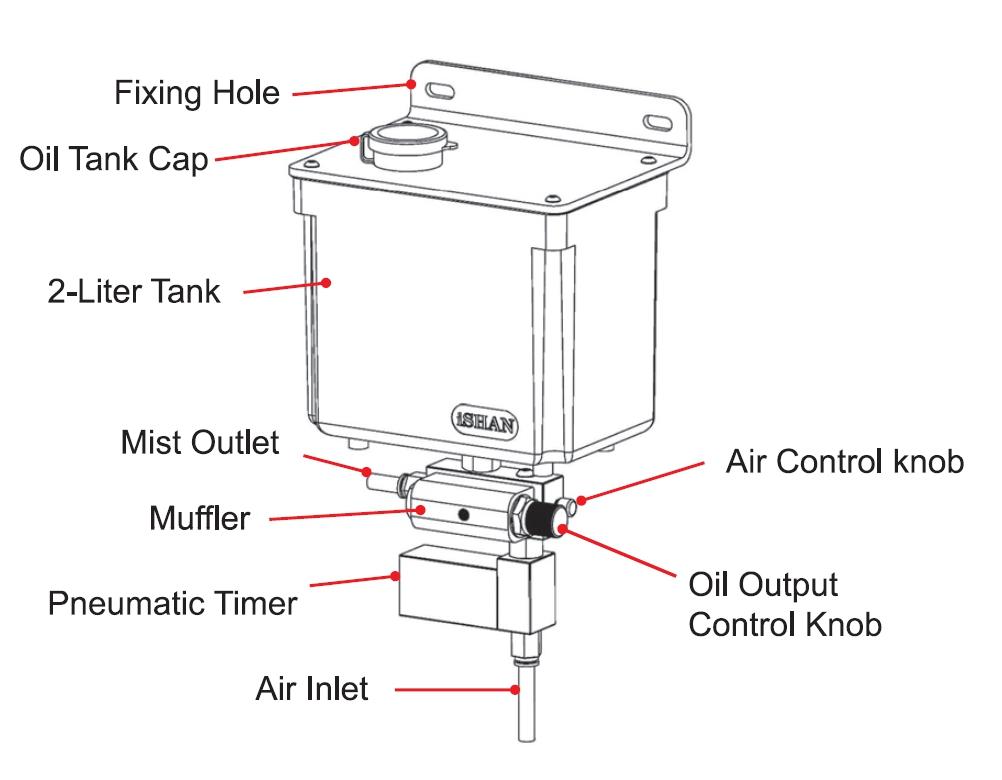

|Tank Capacity||2.0 Liter|
|Numbers of Output Bores||1~3|
|Recommended Viscosity Range||32 cSt|
