Oil Lubricator
Oil Lubricator
Oil Lubricator

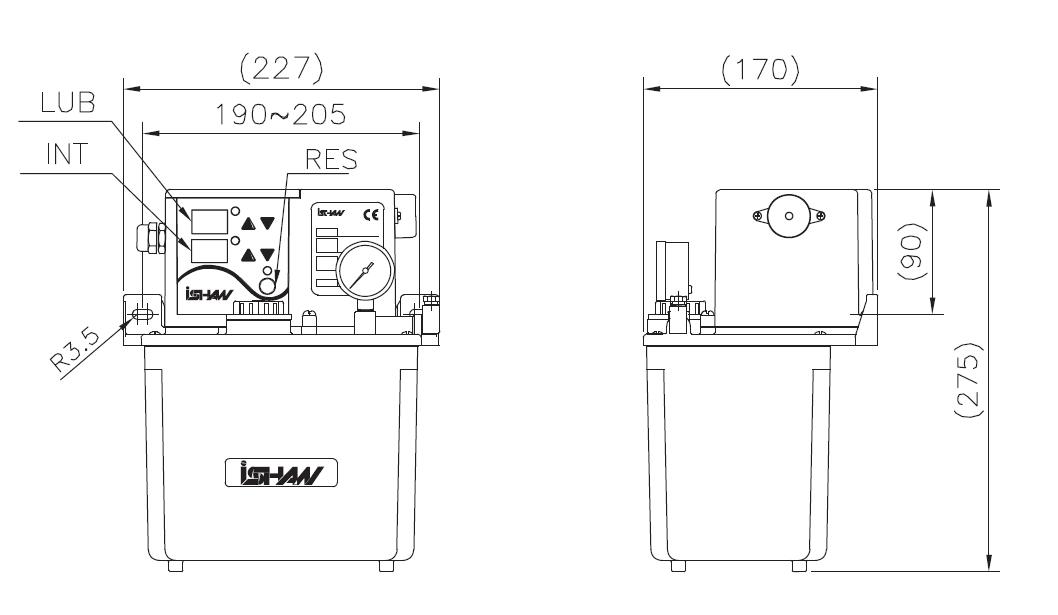

YET-A-3L
| 1. Three operation modes as, |
| (a) Lubrication : the lubricator runs via lubrication time after the power is on. |
| (b) Intermittence : the lubricator runs via intermittent time after the power is on. |
| (c) Memory : the lubricator runs via the previous set after the power is on. |
| 2. Lubrication and intermittent time can be adjusted. |
| 3. The float switch alarms and output signal when the oil level is low. |
| 4. The over temperature/load protector is attached to protect the motor. |
| 5. The function of fixed pressure for the pressure relief valve can prolong the system life. |
| 6. Lubrication time (second/minute) and intermittent time (second/minute/hour/cycle) are adjustable. |
| 7. The indicator on the panel can display the operation of the lubricator. |
| 8. The intermittent period can be adjusted via the machine’s action cycles. |
| 9. “RES” key can force the lubricator to function. |
| Model | YET-A2 | YET-A2P2 | |
| Voltage (Single Phase) | 110V or 220V | 110V or 220V | |
| Consumption Power (W) | 100 | 100 | |
| Capacity of Terminal Output | DC/AC 250V 3A | DC/AC 250V 3A | |
| Lubrication time (second/minute) | 1-999 | 1-999 | |
| Intermittent Time (second/minute/hour/cycle) | 1-999 | 1-999 | |
| Output Bore | Ø4 or Ø6 | Ø4 or Ø6 | |
| Max. Output Pressure Mpa (kgf/cm2) | 1.5 (15) | 1.5 (15) | |
| Output Volume (cc/mm) | 150 | 150 | |
| Pressure Release device | O | O | |
| Float Switch | O | O | |
| Pressure Switch (kgf/cm2) | X | 12-9 | |
| Pressure Gauge | O | O | |
| Alarm Beeper | O | O | |
| Tank Capacity (L) | 2 / 3 / 4(Metal Tank) | ||
| Weight (kg) | 2.7 / 2.9 / 3.7 | ||
