* They system includes YML, YET, YAE, and YAC series lubricators via customer's demands. Features: |
* Discharge at steady volume in every outlet. |
* Include check valves to prevent the reverse flow |
* The oil viscosity, pressure, and temperature will affect the oil discharge volume. |
* Economical and reliable system. |
* The system is recommended to lower pressure application. |

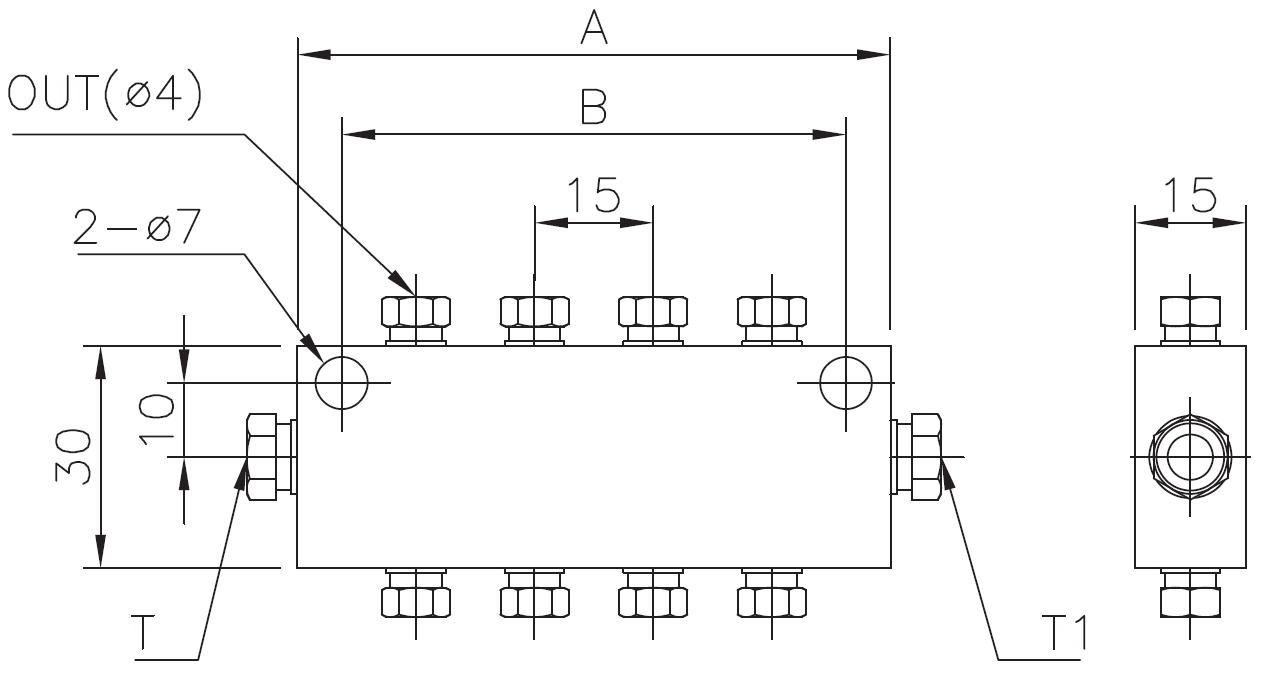

Model | T/T1 | Number of Outlet | A | B |
DE041 | Ø4/Ø4 | 4 | 48 | 36 |
DE042 | Ø6/Ø4 | |||
DE043 | Ø6/Ø6 | |||
DE061 | Ø4/Ø4 | 6 | 64 | 52 |
DE062 | Ø6/Ø4 | |||
DE063 | Ø6/Ø6 | |||
DE081 | Ø4/Ø4 | 8 | 80 | 68 |
DE082 | Ø6/Ø4 | |||
DE083 | Ø6/Ø6 | |||
DE101 | Ø4/Ø4 | 10 | 96 | 84 |
DE102 | Ø6/Ø4 | |||
DE103 | Ø6/Ø6 | |||
DE121 | Ø4/Ø4 | 12 | 112 | 99 |
DE122 | Ø6/Ø4 | |||
DE123 | Ø6/Ø6 |
*Option of the Ø6 outlet is available.
Note: Because of continuous improvements, above specifications are subject to change without prior notice.
