Oil Resistant Distributor
Oil Resistant Distributor
Oil Resistant Distributor
DV06
| * They system includes YML, YET, YAE, and YAC series lubricators via customer's demands. Features： |
| * Discharge at steady volume in every outlet. |
| * Include check valves to prevent the reverse flow |
| * The oil viscosity, pressure, and temperature will affect the oil discharge volume. |
| * Economical and reliable system. |
| * The system is recommended to lower pressure application. |

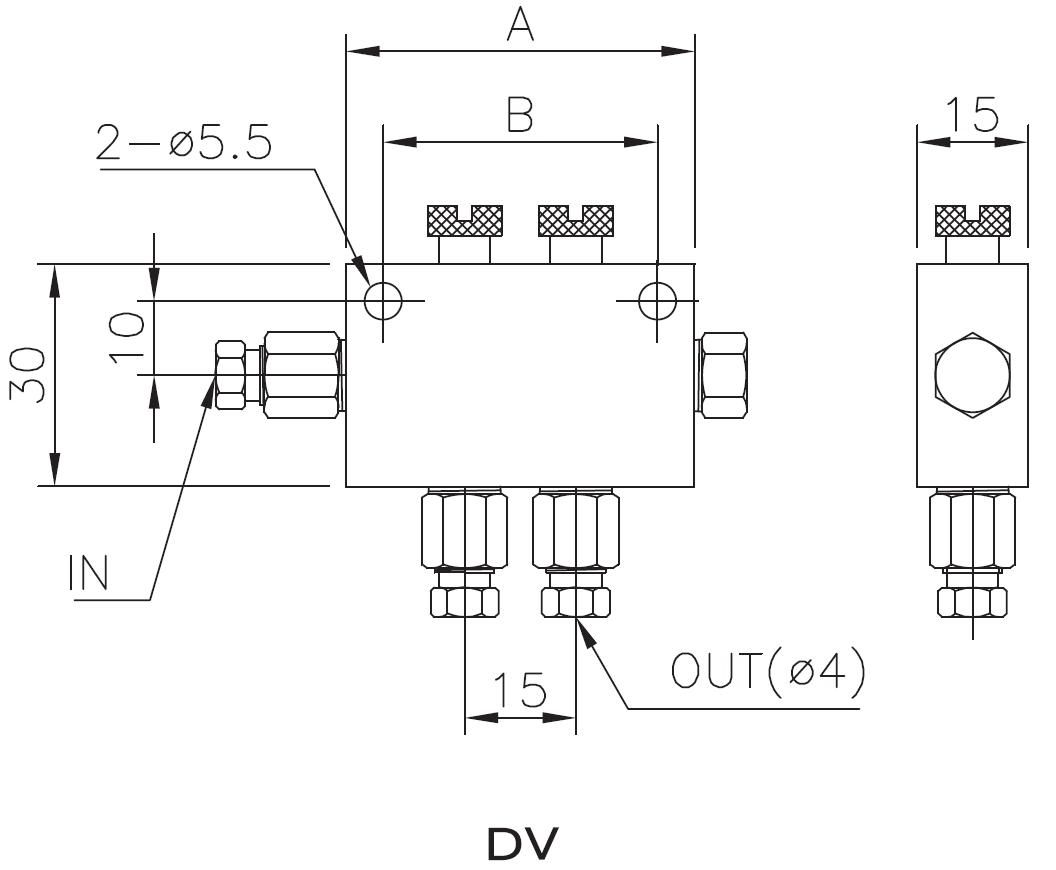

| Model | Inlet Bore | Number of Outlet | A | B |
| DV024 | Ø4 | 2 | 47 | 37 |
| DV026 | Ø6 | |||
| DV034 | Ø4 | 3 | 62 | 52 |
| DV036 | Ø6 | |||
| DV044 | Ø4 | 4 | 77 | 67 |
| DV046 | Ø6 | |||
| DV054 | Ø4 | 5 | 92 | 82 |
| DV056 | Ø6 | |||
| DV064 | Ø4 | 6 | 107 | 97 |
| DV066 | Ø6 | |||
| DV074 | Ø4 | 7 | 122 | 112 |
| DV076 | Ø6 | |||
| DV084 | Ø4 | 8 | 137 | 127 |
| DV086 | Ø6 | |||
| DV094 | Ø4 | 9 | 152 | 142 |
| DV096 | Ø6 | |||
| DV0104 | Ø4 | 10 | 167 | 157 |
| DV0106 | Ø6 |
*Option of the Ø6 outlet is available.
Note： Because of continuous improvements, above specifications are subject to change without prior notice.
