Mist Sprayer
Mist Sprayer
Mist Sprayer

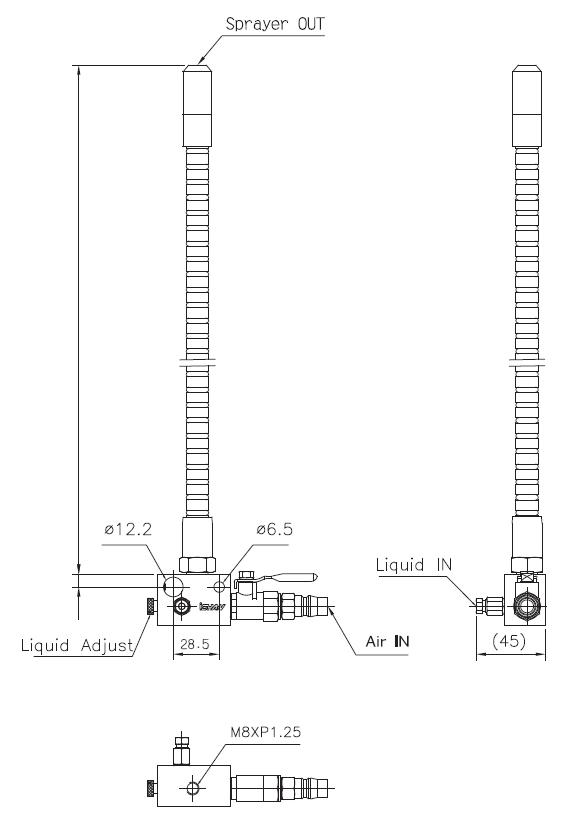

YSC-U-1
YSC-U provides oil and air mist to lubricate nd clean piece, tool, and spindle during machining to prolong the tool life in enhance productivity. The cooling, lubrication, and cleaning during machining can be completed at the same time. Enhance machining speed to save time and cost. Achieve fine and precise machining for alloy and hard metal. Prevent leakage to prolong the life. Provide various mounting for different accessories Application To applied on machineries like, lathes, drilling machines, milling machines, grinding machines, topping machines, CNC machines, pressing machines, and conveyors. Remark Clean oil is a must. Corrosive oil is prohibited. Compressed air pressure：0.25Mpa(2.5 kgf/cm2). Viscosity 0~68cSt.
| YSC oil consumption test results, |
| 1. Only compressed air is needed (refrigerant or power is not needed.) |
| 2. Cooling air volume and temperature are adjustable. |
| 3. Simple and reliable structure. |
| 4. Device is set on the hot air exit to reduce the noise. |
| 5. Include air inlet switch. |
| 6. No electrical or chemical action. |
| 7. Effective cooling performance. |
| 8. Air exit direction is adjustable. |
| 9. Universal Nozzle is equipped in the air exit. |
| 10. Magnetic stand is optional. |
| 11. Prolong the tool life in machining. |
| 12. Apply for various cooling demands. |
Test Result
| Rate of Cool Wind | % | 50 |
| Inlet Temperature (30°C) | Pressure Mpa (kgf/cm2) | 0.44(4.4) |
| Air Volume (L/min) | 149 | |
| Outlet | Air Volume (L/min) | 88 |
| Temperature(。C) | -25 | |
| Inlet/Outlet | Different Temperature(。C) | 55 |
| Hot Air | Temperature(。C) | 51.7 |
| Quantity of Heat | Kcal /H | 66 |
