Forced Cycle Lubrication Systems

Forced Cycle Lubrication Systems

Forced Cycle Lubrication Systems

YLS-30H

1. YLS includes pressure switch to ensure the normal function.
2. Oil can be recycled after lubrication process.
3. Include pressure valve and pressure gauge for adjustment.
4. The float switch outputs signal when the oil level is low.
5. Include cycling device and filter to ensure oil quality.


ModelYLS(Vertical)
  Voltage (Three Phase)220V/ 380V or 220V/ 440V
  Power (HP)1/2
  Capacity of Terminal Output (A)0.3(Float switch)
3(Pressure switch)
  Pole4
  Current Frequency (Hz)50/60
  Max. Output Pressure Mpa(kgf/cm2)1.5(15)
  Output Volume (L/min) at Ø102.4
  Float SwitchO
  Pressure Switch (kgf/cm2)O
  Pressure GaugeO
  Output BoreØ6 or Ø8 or Ø10
  Alarm BeeperX
  Tank Capacity (L)30/ 40/ 60/ 80/ 100

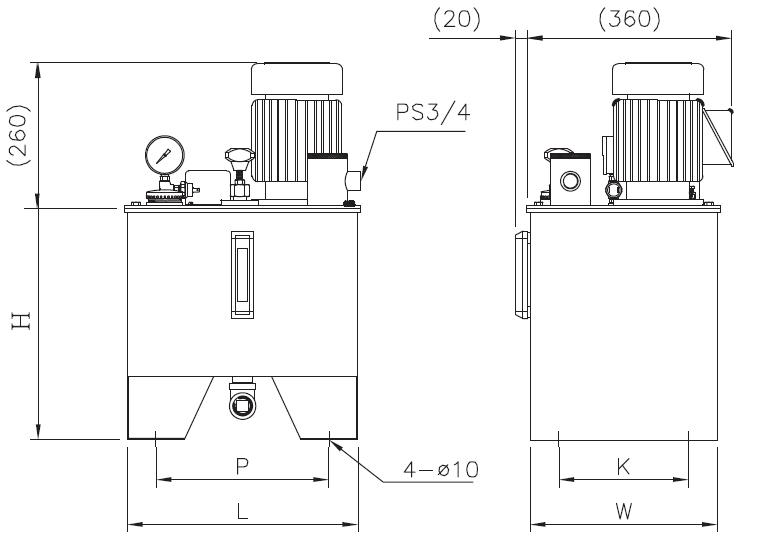

YLS Tank DimLxWxHPK
30L410x335x400300225
40L560x410x400455300
60L600x390x400440250
80L610x420x460450250
100L760x460x500550225

Note:

1. Metal tank of other capacity can be tailered.

2. Recommended oil viscosiry range is 30-150cSt.

3. The output volume is based on 60Hz and 110v/220v.

Because of continuous improvements, above specifications are subject to change without prior notice.
