Forced Cycle Lubrication Systems

Forced Cycle Lubrication Systems

Forced Cycle Lubrication Systems

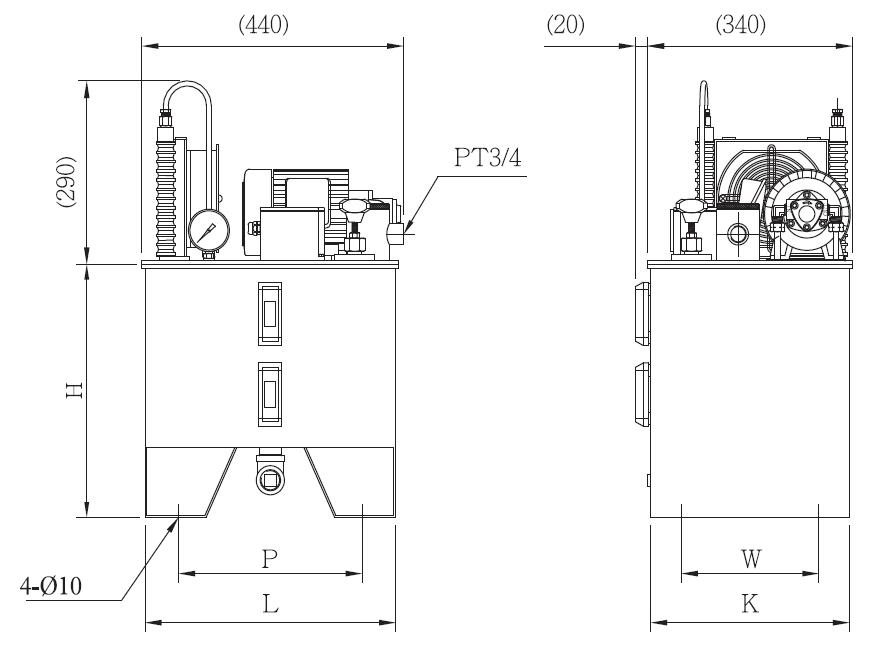

YLD-30H

1. Oil can be recycled after lubrication process.
2. Include cycling device and filter to ensure oil quality.
3. Include cooling device to lower the oil temperature.
4. The float switch outputs signal when the oil level is low.
5. Include pressure valve and pressure gauge for adjustmen.


ModelYLD
  Voltage (Three Phase)220V/ 380V or 220V/ 440V
  Power (HP)1/4
  Capacity of Terminal Output (A)0.3(Float switch)
3(Pressure switch)
  Pole4
  Current Frequency (Hz)50/60
  Max. Output Pressure Mpa(kgf/cm2)0.5(5)
  Output Volume (L/min) at Ø102.3 (TOP-11A) / 3.4 (TOP-12A) / 4.0 (TOP-13A)
  Float SwitchO
  Pressure Switch (kgf/cm2)O
  Pressure GaugeO
  Output BoreØ6 or Ø8 or Ø10
  Alarm BeeperX
  Tank Capacity (L)30/ 40

Note:

1. Metal tank of other capacity can be tailered.

2. Recommended oil viscosiry range is 30-150cSt.

3. The output volume is based on 60Hz and 110v/220v.

Because of continuous improvements, above specifications are subject to change without prior notice.
