Oil Lubricator
Oil Lubricator
Oil Lubricator

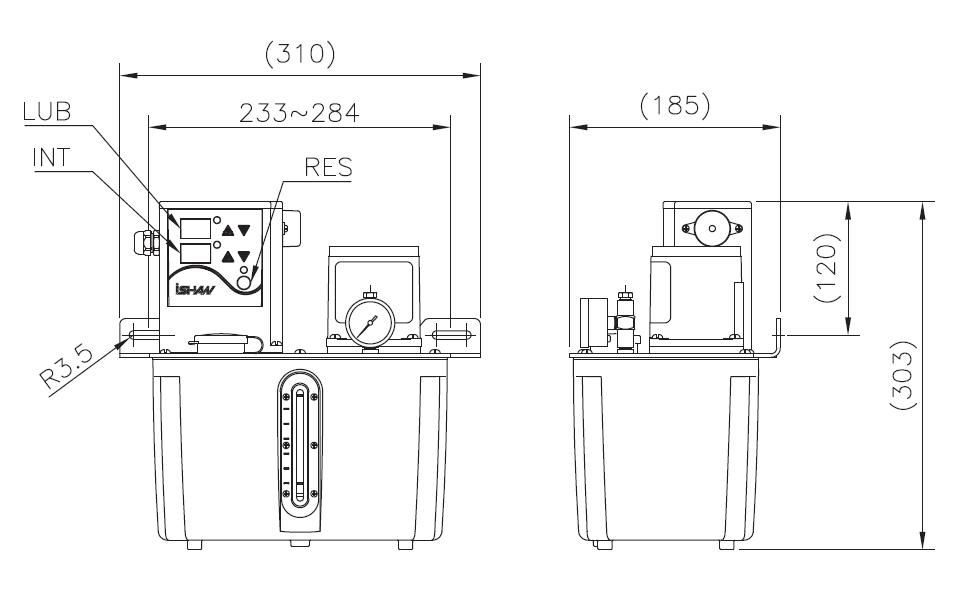

YAK-4L
| 1. With temperature protection device for long term operation. |
| 2. Three operation modes as, |
| a. Lubrication： The lubricator runs via lubrication time after power-on. |
| b. Intermittence： The lubricator runs via intermittent time after power-on. |
| c. Memory： The lubricator runs via the previous set after power-on. |
| 3. Lubrication and intermittent time can be adjusted. |
| 4. The float switch alarms and output signal when the oil level is low. |
| 5. The pressure release device is included. |
| 6. The function of fixed pressure for the pressure relief valve can prolong the system life |
| 7. Lubrication time (second/minute) and intermittent time (second/minute /hour/cycle) are adjustable. |
| 8. The indicator on the panel can display the operation of the lubricator. |
| 9. The intermittent period can be adjusted via the machine’s action cycles. |
| 10. “RES” key can force the lubricator to function. |
| 11. The motor is of long-time operation. |
| Model | YAK |
| Voltage (Single Phase) | 110V or 220V |
| Consumption Power (W) | 56 |
| Output Power (W) | 25 |

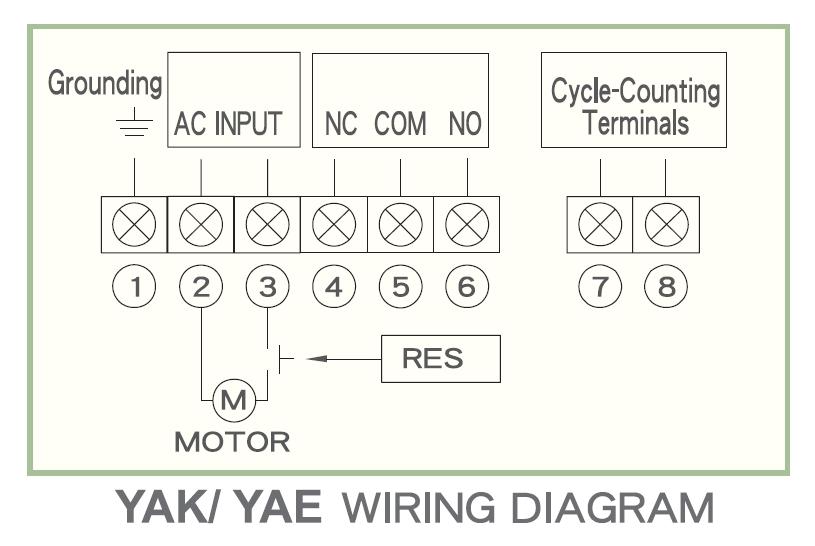

| Capacity of Terminal Output | DC/AC 250V 3A |
| Lubrication time (second/minute) | 1-999 |
| Intermittent Time (second/minute/hour/cycle) | 1-999 |
| Output Bore | Ø4 or Ø6 |
| Max. Output Pressure Mpa (kgf/cm2) | 2 (20) |
| Output Volume (cc/ min) | 150 |
| Pressure Release device | O |
| Float Switch | O |
| Pressure Switch (kgf/cm2) | X (Option) |
| Pressure Gauge | O |
| Alarm Beeper | O |
| Tank Capacity (L) | 3 / 4(Metal Tank) / 8(Metal Tank) / 20 (Metal Tank) |
| Weight (kg) | 4.8 / 5.2 / 9.4 / 18 |
Note： Because of continuous improvements, above specifications are subject to change without prior notice.
