Film Pressure Switch

• Product Features
• Detailed Specifications

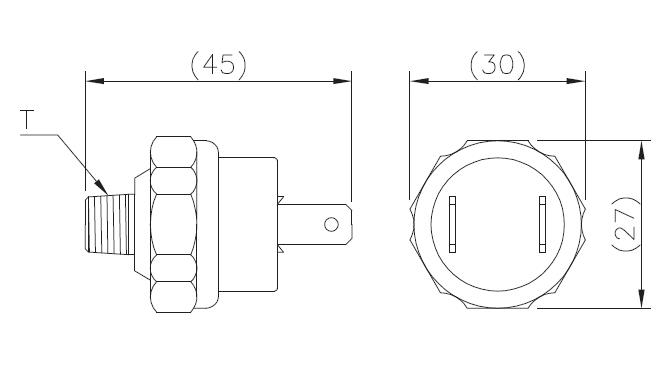

• Assembly drawings

Model	Specification		T	Weight (g)
	ON	OFF
321606	2.1 kg ▲	-	UNF 3/8"-24	35
321609	-	2.1 kg ▲	UNF 3/8"-24	35

▲: upward
P.S. 1. Use rated current 3 A and below
       2. Max. bome pressure is 10 kgf / cm2
