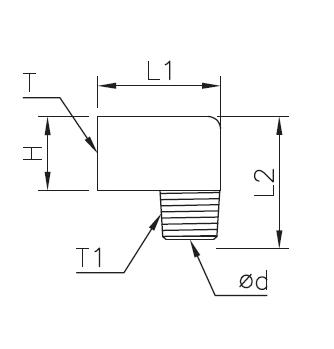

Elbow Adapter
| Model | Bore | Ød | L1 | L2 | T | T1 | H | Weight (g) |
| PH0401 | Ø4 | 3 | 18 | 18 | M8x1.0 | PT1/8 | 10 | 13 |
| PH0402 | Ø4 | 4 | 20 | 22 | M8x1.0 | PT1/4 | 14 | 32 |
| PH0406-1 | Ø4 | 2 | 18 | 18 | M8x1.0 | M6x0.75 | 10 | 13 |
| PH0406 | Ø4 | 2 | 18 | 18 | M8x1.0 | M6x1.0 | 10 | 12 |
| PH0408 | Ø4 | 3 | 18 | 18 | M8x1.0 | M8x1.0 | 10 | 13 |
| PH0601 | Ø6 | 4 | 20 | 20 | M10x1.0 | PT1/8 | 12 | 20 |
| PH0602 | Ø6 | 4 | 20 | 22 | M10x1.0 | PT1/4 | 14 | 29 |
| PH0608 | Ø6 | 3 | 20 | 20 | M10x1.0 | M8x1.0 | 12 | 20 |
| PH0801 | Ø8 | 5 | 26 | 29 | M14x1.5 | PT1/8 | 17 | 52 |
| PH0802 | Ø8 | 6 | 26 | 29 | M14x1.5 | PT1/4 | 17 | 56 |
| PH1001(Special Order) | Ø10 | 5 | 29 | 31 | M16x1.5 | PT1/8 | 19 | 70 |
| PH1002 | Ø10 | 7 | 29 | 31 | M16x1.5 | PT1/4 | 19 | 70 |
