Grease Piston Lubricator

Grease Piston Lubricator

Grease Piston Lubricator

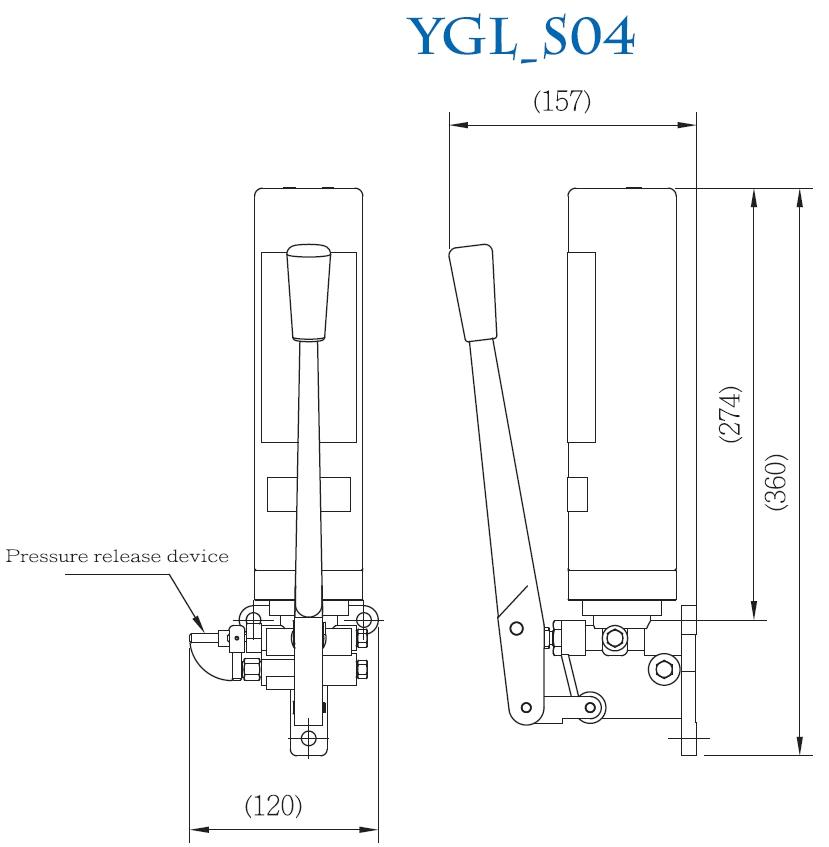

YGL-S04

1. Include double sealing device. The grease chunk will not be stocked in the cup.
2. The grease residue will not remain in the cup.
3. The output bore can be right or left via installation demand.
4. Refill by manual or electrical grease guns.
5. Include manual pressure release device.
6. YGL-S incorporates with piston grease distributor.


ModelYGL-S
  Max. Output Pressure Mpa (kgf/cm2)10(100)
  Output Volume (c.c./ cycle)2
  Output BoreØ6
  Cup Capacity (cc)8001200400(Tube Type)
  Weight (kg)1.92.21.4(Catridge not included)

Note: Because of continuous improvements, above specifications are subject to change without prior notice.
